The Ice router interface. More...

#include <Ice/Ice.h>

Inheritance diagram for Ice::Router:

[legend]

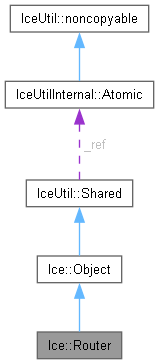

Collaboration diagram for Ice::Router:

[legend]

Public Types
typedef RouterPtr	PointerType
typedef RouterPrx	ProxyType

Public Member Functions
virtual ObjectProxySeq	addProxies (const ObjectProxySeq &proxies, const Current &current=emptyCurrent)=0
	Add new proxy information to the router's routing table.
virtual ObjectPrx	getClientProxy (IceUtil::Optional< bool > &hasRoutingTable, const Current &current=emptyCurrent) const =0
	Get the router's client proxy, i.e., the proxy to use for forwarding requests from the client to the router.
virtual ObjectPrx	getServerProxy (const Current &current=emptyCurrent) const =0
	Get the router's server proxy, i.e., the proxy to use for forwarding requests from the server to the router.
virtual const ::std::string &	ice_id (const Current &current=emptyCurrent) const
	Obtains a Slice type ID representing the most-derived interface supported by this object.
virtual ::std::vector< ::std::string >	ice_ids (const Current &current=emptyCurrent) const
	Obtains a list of the Slice type IDs representing the interfaces supported by this object.
virtual bool	ice_isA (const ::std::string &id, const Current &current=emptyCurrent) const
	Determines whether this object supports an interface with the given Slice type ID.
virtual	~Router ()
Public Member Functions inherited from Ice::Object
virtual ObjectPtr	ice_clone () const
	Returns a shallow copy of the object.
virtual void	ice_collectable (bool b)
	Determines whether this object, and by extension the graph of all objects reachable from this object, are eligible for garbage collection when all external references to the graph have been released.
virtual bool	ice_dispatch (Ice::Request &request, const DispatchInterceptorAsyncCallbackPtr &cb=0)
	Dispatches an invocation to a servant.
virtual SlicedDataPtr	ice_getSlicedData () const
	Obtains the sliced data associated with this instance.
virtual bool	ice_isA (const std::string &s, const Current &current=Ice::emptyCurrent) const
	Tests whether this object supports a specific Slice interface.
virtual Int	ice_operationAttributes (const std::string &operation) const
	Returns the Freeze metadata attributes for an operation.
virtual void	ice_ping (const Current &current=Ice::emptyCurrent) const
	Tests whether this object can be reached.
virtual void	ice_postUnmarshal ()
	The Ice run time invokes this method vafter unmarshaling an object's data members.
virtual void	ice_preMarshal ()
	The Ice run time invokes this method prior to marshaling an object's data members.
virtual bool	operator< (const Object &) const
virtual bool	operator== (const Object &) const
Public Member Functions inherited from IceUtil::Shared
void	__clearFlag (unsigned char flag)
virtual void	__decRef ()
virtual int	__getRef () const
bool	__hasFlag (unsigned char flag)
virtual void	__incRef ()
void	__setFlag (unsigned char flag)
virtual void	__setNoDelete (bool)
Shared &	operator= (const Shared &)
	Shared ()
	Shared (const Shared &)
virtual	~Shared ()

Static Public Member Functions
static const ::std::string &	ice_staticId ()
	Obtains the Slice type ID corresponding to this class.
Static Public Member Functions inherited from Ice::Object
static const std::string &	ice_staticId ()
	Obtains the Slice type ID of this type.

Additional Inherited Members
Static Public Attributes inherited from IceUtil::Shared
static const unsigned char	NoDelete
Protected Member Functions inherited from Ice::Object
	Object ()
virtual	~Object ()
Protected Attributes inherited from IceUtil::Shared
unsigned char	_flags
IceUtilInternal::Atomic	_ref

Detailed Description

The Ice router interface.

Routers can be set either globally with Communicator#setDefaultRouter, or with ice_router on specific proxies.

Member Typedef Documentation

◆ PointerType

typedef RouterPtr Ice::Router::PointerType

◆ ProxyType

typedef RouterPrx Ice::Router::ProxyType

Constructor & Destructor Documentation

◆ ~Router()

virtual Ice::Router::~Router ( )

virtual

Reimplemented in Glacier2::Router.

Member Function Documentation

◆ addProxies()

virtual ObjectProxySeq Ice::Router::addProxies	(	const ObjectProxySeq &	proxies,
		const Current &	current = emptyCurrent )

pure virtual

Add new proxy information to the router's routing table.

Parameters

proxies	The proxies to add.
current	The Current object for the invocation.

Returns: Proxies discarded by the router.

◆ getClientProxy()

virtual ObjectPrx Ice::Router::getClientProxy	(	IceUtil::Optional< bool > &	hasRoutingTable,
		const Current &	current = emptyCurrent ) const

pure virtual

Get the router's client proxy, i.e., the proxy to use for forwarding requests from the client to the router.

If a null proxy is returned, the client will forward requests to the router's endpoints.

Parameters

hasRoutingTable	Indicates whether or not the router supports a routing table. If it is supported, the Ice runtime will call addProxies to populate the routing table. This out parameter is only supported starting with Ice 3.7. The Ice runtime assumes the router has a routing table if the optional is not set.
current	The Current object for the invocation.

Returns: The router's client proxy.

◆ getServerProxy()

virtual ObjectPrx Ice::Router::getServerProxy ( const Current & current = emptyCurrent ) const

pure virtual

Get the router's server proxy, i.e., the proxy to use for forwarding requests from the server to the router.

Parameters

current The Current object for the invocation.

Returns: The router's server proxy.

◆ ice_id()

virtual const ::std::string & Ice::Router::ice_id ( const Current & current = emptyCurrent ) const

virtual

Obtains a Slice type ID representing the most-derived interface supported by this object.

Parameters

current The Current object for the invocation.

Returns: A fully-scoped type ID.

Reimplemented from Ice::Object.

◆ ice_ids()

virtual ::std::vector< ::std::string > Ice::Router::ice_ids ( const Current & current = emptyCurrent ) const

virtual

Obtains a list of the Slice type IDs representing the interfaces supported by this object.

Parameters

current The Current object for the invocation.

Returns: A list of fully-scoped type IDs.

Reimplemented from Ice::Object.

◆ ice_isA()

virtual bool Ice::Router::ice_isA	(	const ::std::string &	id,
		const Current &	current = emptyCurrent ) const

virtual

Determines whether this object supports an interface with the given Slice type ID.

Parameters

id	The fully-scoped Slice type ID.
current	The Current object for the invocation.

Returns: True if this object supports the interface, false, otherwise.

◆ ice_staticId()

const ::std::string & Ice::Router::ice_staticId ( )

static

Obtains the Slice type ID corresponding to this class.

Returns: A fully-scoped type ID.

The documentation for this class was generated from the following file:

generated/cpp98/x64/Release/Ice/Router.h
