The Glacier2 specialization of the Ice::Router interface. More...

#include <Glacier2/Glacier2.h>

Inheritance diagram for Glacier2::Router:

[legend]

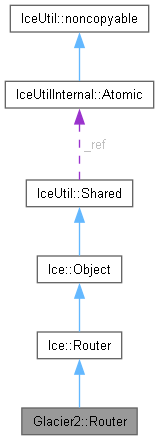

Collaboration diagram for Glacier2::Router:

[legend]

Public Types
typedef RouterPtr	PointerType
typedef RouterPrx	ProxyType
Public Types inherited from Ice::Router
typedef RouterPtr	PointerType
typedef RouterPrx	ProxyType

Public Member Functions
virtual void	createSession_async (const ::Glacier2::AMD_Router_createSessionPtr &cb, const ::std::string &userId, const ::std::string &password, const ::Ice::Current &current=::Ice::emptyCurrent)=0
	Create a per-client session with the router.
virtual void	createSessionFromSecureConnection_async (const ::Glacier2::AMD_Router_createSessionFromSecureConnectionPtr &cb, const ::Ice::Current &current=::Ice::emptyCurrent)=0
	Create a per-client session with the router.
virtual void	destroySession (const ::Ice::Current &current=::Ice::emptyCurrent)=0
	Destroy the calling client's session with this router.
virtual::Ice::Int	getACMTimeout (const ::Ice::Current &current=::Ice::emptyCurrent) const =0
	Get the value of the ACM timeout.
virtual::std::string	getCategoryForClient (const ::Ice::Current &current=::Ice::emptyCurrent) const =0
	This category must be used in the identities of all of the client's callback objects.
virtual::Ice::Long	getSessionTimeout (const ::Ice::Current &current=::Ice::emptyCurrent) const =0
	Get the value of the session timeout.
virtual const ::std::string &	ice_id (const ::Ice::Current &current=::Ice::emptyCurrent) const
	Obtains a Slice type ID representing the most-derived interface supported by this object.
virtual ::std::vector< ::std::string >	ice_ids (const ::Ice::Current &current=::Ice::emptyCurrent) const
	Obtains a list of the Slice type IDs representing the interfaces supported by this object.
virtual bool	ice_isA (const ::std::string &id, const ::Ice::Current &current=::Ice::emptyCurrent) const
	Determines whether this object supports an interface with the given Slice type ID.
virtual void	refreshSession_async (const ::Glacier2::AMD_Router_refreshSessionPtr &cb, const ::Ice::Current &current=::Ice::emptyCurrent)=0
	Keep the calling client's session with this router alive.
virtual	~Router ()
Public Member Functions inherited from Ice::Router
virtual ObjectProxySeq	addProxies (const ObjectProxySeq &proxies, const Current &current=emptyCurrent)=0
	Add new proxy information to the router's routing table.
virtual ObjectPrx	getClientProxy (IceUtil::Optional< bool > &hasRoutingTable, const Current &current=emptyCurrent) const =0
	Get the router's client proxy, i.e., the proxy to use for forwarding requests from the client to the router.
virtual ObjectPrx	getServerProxy (const Current &current=emptyCurrent) const =0
	Get the router's server proxy, i.e., the proxy to use for forwarding requests from the server to the router.
virtual const ::std::string &	ice_id (const Current &current=emptyCurrent) const
	Obtains a Slice type ID representing the most-derived interface supported by this object.
virtual ::std::vector< ::std::string >	ice_ids (const Current &current=emptyCurrent) const
	Obtains a list of the Slice type IDs representing the interfaces supported by this object.
virtual bool	ice_isA (const ::std::string &id, const Current &current=emptyCurrent) const
	Determines whether this object supports an interface with the given Slice type ID.
Public Member Functions inherited from Ice::Object
virtual ObjectPtr	ice_clone () const
	Returns a shallow copy of the object.
virtual void	ice_collectable (bool b)
	Determines whether this object, and by extension the graph of all objects reachable from this object, are eligible for garbage collection when all external references to the graph have been released.
virtual bool	ice_dispatch (Ice::Request &request, const DispatchInterceptorAsyncCallbackPtr &cb=0)
	Dispatches an invocation to a servant.
virtual SlicedDataPtr	ice_getSlicedData () const
	Obtains the sliced data associated with this instance.
virtual bool	ice_isA (const std::string &s, const Current &current=Ice::emptyCurrent) const
	Tests whether this object supports a specific Slice interface.
virtual Int	ice_operationAttributes (const std::string &operation) const
	Returns the Freeze metadata attributes for an operation.
virtual void	ice_ping (const Current &current=Ice::emptyCurrent) const
	Tests whether this object can be reached.
virtual void	ice_postUnmarshal ()
	The Ice run time invokes this method vafter unmarshaling an object's data members.
virtual void	ice_preMarshal ()
	The Ice run time invokes this method prior to marshaling an object's data members.
virtual bool	operator< (const Object &) const
virtual bool	operator== (const Object &) const
Public Member Functions inherited from IceUtil::Shared
void	__clearFlag (unsigned char flag)
virtual void	__decRef ()
virtual int	__getRef () const
bool	__hasFlag (unsigned char flag)
virtual void	__incRef ()
void	__setFlag (unsigned char flag)
virtual void	__setNoDelete (bool)
Shared &	operator= (const Shared &)
	Shared ()
	Shared (const Shared &)
virtual	~Shared ()

Static Public Member Functions
static const ::std::string &	ice_staticId ()
	Obtains the Slice type ID corresponding to this class.
Static Public Member Functions inherited from Ice::Router
static const ::std::string &	ice_staticId ()
	Obtains the Slice type ID corresponding to this class.
Static Public Member Functions inherited from Ice::Object
static const std::string &	ice_staticId ()
	Obtains the Slice type ID of this type.

Additional Inherited Members
Static Public Attributes inherited from IceUtil::Shared
static const unsigned char	NoDelete
Protected Member Functions inherited from Ice::Object
	Object ()
virtual	~Object ()
Protected Attributes inherited from IceUtil::Shared
unsigned char	_flags
IceUtilInternal::Atomic	_ref

Detailed Description

The Glacier2 specialization of the Ice::Router interface.

Member Typedef Documentation

◆ PointerType

typedef RouterPtr Glacier2::Router::PointerType

◆ ProxyType

typedef RouterPrx Glacier2::Router::ProxyType

Constructor & Destructor Documentation

◆ ~Router()

virtual Glacier2::Router::~Router ( )

virtual

Reimplemented from Ice::Router.

Member Function Documentation

◆ createSession_async()

virtual void Glacier2::Router::createSession_async	(	const ::Glacier2::AMD_Router_createSessionPtr &	cb,
		const ::std::string &	userId,
		const ::std::string &	password,
		const ::Ice::Current &	current = ::Ice::emptyCurrent )

pure virtual

Create a per-client session with the router.

If a SessionManager has been installed, a proxy to a Session object is returned to the client. Otherwise, null is returned and only an internal session (i.e., not visible to the client) is created.

If a session proxy is returned, it must be configured to route through the router that created it. This will happen automatically if the router is configured as the client's default router at the time the session proxy is created in the client process, otherwise the client must configure the session proxy explicitly.

Parameters

cb	The AMD callback object for the invocation.
userId	The user id for which to check the password.
password	The password for the given user id.
current	The Current object for the invocation.

Exceptions

Glacier2::CannotCreateSessionException	Raised if the session cannot be created.
Glacier2::PermissionDeniedException	Raised if the password for the given user id is not correct, or if the user is not allowed access.

See also: Session; SessionManager; PermissionsVerifier

◆ createSessionFromSecureConnection_async()

virtual void Glacier2::Router::createSessionFromSecureConnection_async	(	const ::Glacier2::AMD_Router_createSessionFromSecureConnectionPtr &	cb,
		const ::Ice::Current &	current = ::Ice::emptyCurrent )

pure virtual

Create a per-client session with the router.

The user is authenticated through the SSL certificates that have been associated with the connection. If a SessionManager has been installed, a proxy to a Session object is returned to the client. Otherwise, null is returned and only an internal session (i.e., not visible to the client) is created.

If a session proxy is returned, it must be configured to route through the router that created it. This will happen automatically if the router is configured as the client's default router at the time the session proxy is created in the client process, otherwise the client must configure the session proxy explicitly.

Parameters

cb	The AMD callback object for the invocation.
current	The Current object for the invocation.

Exceptions

Glacier2::CannotCreateSessionException	Raised if the session cannot be created.
Glacier2::PermissionDeniedException	Raised if the user cannot be authenticated or if the user is not allowed access.

See also: Session; SessionManager; PermissionsVerifier

◆ destroySession()

virtual void Glacier2::Router::destroySession ( const ::Ice::Current & current = ::Ice::emptyCurrent )

pure virtual

Destroy the calling client's session with this router.

Parameters

current The Current object for the invocation.

Exceptions

Glacier2::SessionNotExistException Raised if no session exists for the calling client.

◆ getACMTimeout()

virtual::Ice::Int Glacier2::Router::getACMTimeout ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

pure virtual

Get the value of the ACM timeout.

Clients supporting connection heartbeats can enable them instead of explicitly sending keep alives requests.

NOTE: This method is only available since Ice 3.6.

Parameters

current The Current object for the invocation.

Returns: The timeout (in seconds).

◆ getCategoryForClient()

virtual::std::string Glacier2::Router::getCategoryForClient ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

pure virtual

This category must be used in the identities of all of the client's callback objects.

This is necessary in order for the router to forward callback requests to the intended client. If the Glacier2 server endpoints are not set, the returned category is an empty string.

Parameters

current The Current object for the invocation.

Returns: The category.

◆ getSessionTimeout()

virtual::Ice::Long Glacier2::Router::getSessionTimeout ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

pure virtual

Get the value of the session timeout.

Sessions are destroyed if they see no activity for this period of time.

Parameters

current The Current object for the invocation.

Returns: The timeout (in seconds).

◆ ice_id()

virtual const ::std::string & Glacier2::Router::ice_id ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

virtual

Obtains a Slice type ID representing the most-derived interface supported by this object.

Parameters

current The Current object for the invocation.

Returns: A fully-scoped type ID.

◆ ice_ids()

virtual ::std::vector< ::std::string > Glacier2::Router::ice_ids ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

Obtains a list of the Slice type IDs representing the interfaces supported by this object.

Parameters

current The Current object for the invocation.

Returns: A list of fully-scoped type IDs.

◆ ice_isA()

virtual bool Glacier2::Router::ice_isA	(	const ::std::string &	id,
		const ::Ice::Current &	current = ::Ice::emptyCurrent ) const

virtual

Determines whether this object supports an interface with the given Slice type ID.

Parameters

id	The fully-scoped Slice type ID.
current	The Current object for the invocation.

Returns: True if this object supports the interface, false, otherwise.

◆ ice_staticId()

const ::std::string & Glacier2::Router::ice_staticId ( )

static

Obtains the Slice type ID corresponding to this class.

Returns: A fully-scoped type ID.

◆ refreshSession_async()

virtual void Glacier2::Router::refreshSession_async	(	const ::Glacier2::AMD_Router_refreshSessionPtr &	cb,
		const ::Ice::Current &	current = ::Ice::emptyCurrent )

pure virtual

Keep the calling client's session with this router alive.

Parameters

cb	The AMD callback object for the invocation.
current	The Current object for the invocation.

Exceptions

Glacier2::SessionNotExistException Raised if no session exists for the calling client.

The documentation for this class was generated from the following file:

generated/cpp98/x64/Release/Glacier2/Router.h
