Provides access to an UDP endpoint information. More...

#include <Ice/Ice.h>

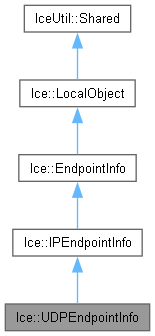

Inheritance diagram for Ice::UDPEndpointInfo:

[legend]

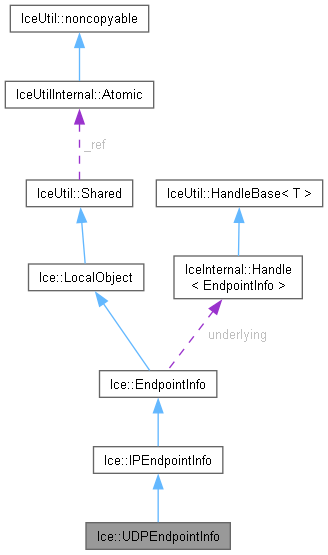

Collaboration diagram for Ice::UDPEndpointInfo:

[legend]

Public Types
typedef UDPEndpointInfoPtr	PointerType
Public Types inherited from Ice::IPEndpointInfo
typedef IPEndpointInfoPtr	PointerType
Public Types inherited from Ice::EndpointInfo
typedef EndpointInfoPtr	PointerType

Public Member Functions
	UDPEndpointInfo ()
	UDPEndpointInfo (const ::Ice::EndpointInfoPtr &underlying, ::Ice::Int timeout, bool compress, const ::std::string &host, ::Ice::Int port, const ::std::string &sourceAddress, const ::std::string &mcastInterface, ::Ice::Int mcastTtl)
	One-shot constructor to initialize all data members.
virtual	~UDPEndpointInfo ()
Public Member Functions inherited from Ice::IPEndpointInfo
	IPEndpointInfo ()
	IPEndpointInfo (const ::Ice::EndpointInfoPtr &underlying, ::Ice::Int timeout, bool compress, const ::std::string &host, ::Ice::Int port, const ::std::string &sourceAddress)
	One-shot constructor to initialize all data members.
virtual	~IPEndpointInfo ()
Public Member Functions inherited from Ice::EndpointInfo
virtual bool	datagram () const throw () =0
	Returns true if this endpoint is a datagram endpoint.
	EndpointInfo ()
	EndpointInfo (const ::Ice::EndpointInfoPtr &underlying, ::Ice::Int timeout, bool compress)
	One-shot constructor to initialize all data members.
virtual bool	secure () const throw () =0
	Returns true if this endpoint is a secure endpoint.
virtual Short	type () const throw () =0
	Returns the type of the endpoint.
virtual	~EndpointInfo ()
Public Member Functions inherited from Ice::LocalObject
virtual bool	operator< (const LocalObject &) const
virtual bool	operator== (const LocalObject &) const
Public Member Functions inherited from IceUtil::Shared
void	__clearFlag (unsigned char flag)
virtual void	__decRef ()
virtual int	__getRef () const
bool	__hasFlag (unsigned char flag)
virtual void	__incRef ()
void	__setFlag (unsigned char flag)
virtual void	__setNoDelete (bool)
Shared &	operator= (const Shared &)
	Shared ()
	Shared (const Shared &)
virtual	~Shared ()

Public Attributes
::std::string	mcastInterface
	The multicast interface.
::Ice::Int	mcastTtl
	The multicast time-to-live (or hops).
Public Attributes inherited from Ice::IPEndpointInfo
::std::string	host
	The host or address configured with the endpoint.
::Ice::Int	port
	The port number.
::std::string	sourceAddress
	The source IP address.
Public Attributes inherited from Ice::EndpointInfo
bool	compress
	Specifies whether or not compression should be used if available when using this endpoint.
::Ice::Int	timeout
	The timeout for the endpoint in milliseconds.
::Ice::EndpointInfoPtr	underlying
	The information of the underyling endpoint of null if there's no underlying endpoint.

Additional Inherited Members
Static Public Attributes inherited from IceUtil::Shared
static const unsigned char	NoDelete
Protected Attributes inherited from IceUtil::Shared
unsigned char	_flags
IceUtilInternal::Atomic	_ref

Detailed Description

Provides access to an UDP endpoint information.

See also: Endpoint

Member Typedef Documentation

◆ PointerType

typedef UDPEndpointInfoPtr Ice::UDPEndpointInfo::PointerType

Constructor & Destructor Documentation

◆ ~UDPEndpointInfo()

virtual Ice::UDPEndpointInfo::~UDPEndpointInfo ( )

virtual

◆ UDPEndpointInfo() [1/2]

Ice::UDPEndpointInfo::UDPEndpointInfo ( )

inline

◆ UDPEndpointInfo() [2/2]

Ice::UDPEndpointInfo::UDPEndpointInfo	(	const ::Ice::EndpointInfoPtr &	underlying,
		::Ice::Int	timeout,
		bool	compress,
		const ::std::string &	host,
		::Ice::Int	port,
		const ::std::string &	sourceAddress,
		const ::std::string &	mcastInterface,
		::Ice::Int	mcastTtl )

inline

One-shot constructor to initialize all data members.

Parameters

underlying	The information of the underyling endpoint of null if there's no underlying endpoint.
timeout	The timeout for the endpoint in milliseconds.
compress	Specifies whether or not compression should be used if available when using this endpoint.
host	The host or address configured with the endpoint.
port	The port number.
sourceAddress	The source IP address.
mcastInterface	The multicast interface.
mcastTtl	The multicast time-to-live (or hops).

Member Data Documentation

◆ mcastInterface

::std::string Ice::UDPEndpointInfo::mcastInterface

The multicast interface.

◆ mcastTtl

::Ice::Int Ice::UDPEndpointInfo::mcastTtl

The multicast time-to-live (or hops).

The documentation for this class was generated from the following file:

generated/cpp98/x64/Release/Ice/Endpoint.h
