Provides access to the connection details of a UDP connection. More...

#include <Ice/Ice.h>

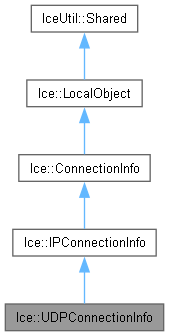

Inheritance diagram for Ice::UDPConnectionInfo:

[legend]

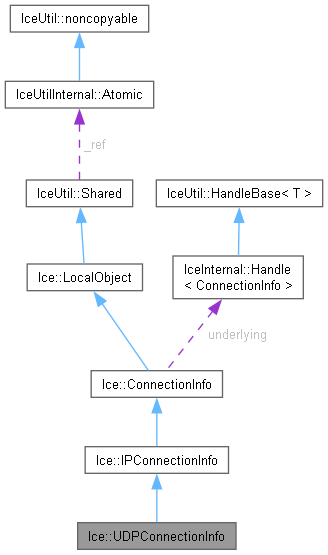

Collaboration diagram for Ice::UDPConnectionInfo:

[legend]

Public Types
typedef UDPConnectionInfoPtr	PointerType
Public Types inherited from Ice::IPConnectionInfo
typedef IPConnectionInfoPtr	PointerType
Public Types inherited from Ice::ConnectionInfo
typedef ConnectionInfoPtr	PointerType

Public Member Functions
	UDPConnectionInfo ()
	Default constructor that assigns default values to members as specified in the Slice definition.
	UDPConnectionInfo (const ::Ice::ConnectionInfoPtr &underlying, bool incoming, const ::std::string &adapterName, const ::std::string &connectionId, const ::std::string &localAddress, ::Ice::Int localPort, const ::std::string &remoteAddress, ::Ice::Int remotePort, const ::std::string &mcastAddress, ::Ice::Int mcastPort, ::Ice::Int rcvSize, ::Ice::Int sndSize)
	One-shot constructor to initialize all data members.
virtual	~UDPConnectionInfo ()
Public Member Functions inherited from Ice::IPConnectionInfo
	IPConnectionInfo ()
	Default constructor that assigns default values to members as specified in the Slice definition.
	IPConnectionInfo (const ::Ice::ConnectionInfoPtr &underlying, bool incoming, const ::std::string &adapterName, const ::std::string &connectionId, const ::std::string &localAddress, ::Ice::Int localPort, const ::std::string &remoteAddress, ::Ice::Int remotePort)
	One-shot constructor to initialize all data members.
virtual	~IPConnectionInfo ()
Public Member Functions inherited from Ice::ConnectionInfo
	ConnectionInfo ()
	ConnectionInfo (const ::Ice::ConnectionInfoPtr &underlying, bool incoming, const ::std::string &adapterName, const ::std::string &connectionId)
	One-shot constructor to initialize all data members.
virtual	~ConnectionInfo ()
Public Member Functions inherited from Ice::LocalObject
virtual bool	operator< (const LocalObject &) const
virtual bool	operator== (const LocalObject &) const
Public Member Functions inherited from IceUtil::Shared
void	__clearFlag (unsigned char flag)
virtual void	__decRef ()
virtual int	__getRef () const
bool	__hasFlag (unsigned char flag)
virtual void	__incRef ()
void	__setFlag (unsigned char flag)
virtual void	__setNoDelete (bool)
Shared &	operator= (const Shared &)
	Shared ()
	Shared (const Shared &)
virtual	~Shared ()

Public Attributes
::std::string	mcastAddress
	The multicast address.
::Ice::Int	mcastPort
	The multicast port.
::Ice::Int	rcvSize
	The connection buffer receive size.
::Ice::Int	sndSize
	The connection buffer send size.
Public Attributes inherited from Ice::IPConnectionInfo
::std::string	localAddress
	The local address.
::Ice::Int	localPort
	The local port.
::std::string	remoteAddress
	The remote address.
::Ice::Int	remotePort
	The remote port.
Public Attributes inherited from Ice::ConnectionInfo
::std::string	adapterName
	The name of the adapter associated with the connection.
::std::string	connectionId
	The connection id.
bool	incoming
	Whether or not the connection is an incoming or outgoing connection.
::Ice::ConnectionInfoPtr	underlying
	The information of the underyling transport or null if there's no underlying transport.

Additional Inherited Members
Static Public Attributes inherited from IceUtil::Shared
static const unsigned char	NoDelete
Protected Attributes inherited from IceUtil::Shared
unsigned char	_flags
IceUtilInternal::Atomic	_ref

Detailed Description

Provides access to the connection details of a UDP connection.

Member Typedef Documentation

◆ PointerType

typedef UDPConnectionInfoPtr Ice::UDPConnectionInfo::PointerType

Constructor & Destructor Documentation

◆ ~UDPConnectionInfo()

virtual Ice::UDPConnectionInfo::~UDPConnectionInfo ( )

virtual

◆ UDPConnectionInfo() [1/2]

Ice::UDPConnectionInfo::UDPConnectionInfo ( )

inline

Default constructor that assigns default values to members as specified in the Slice definition.

◆ UDPConnectionInfo() [2/2]

Ice::UDPConnectionInfo::UDPConnectionInfo	(	const ::Ice::ConnectionInfoPtr &	underlying,
		bool	incoming,
		const ::std::string &	adapterName,
		const ::std::string &	connectionId,
		const ::std::string &	localAddress,
		::Ice::Int	localPort,
		const ::std::string &	remoteAddress,
		::Ice::Int	remotePort,
		const ::std::string &	mcastAddress,
		::Ice::Int	mcastPort,
		::Ice::Int	rcvSize,
		::Ice::Int	sndSize )

inline

One-shot constructor to initialize all data members.

Parameters

underlying	The information of the underyling transport or null if there's no underlying transport.
incoming	Whether or not the connection is an incoming or outgoing connection.
adapterName	The name of the adapter associated with the connection.
connectionId	The connection id.
localAddress	The local address.
localPort	The local port.
remoteAddress	The remote address.
remotePort	The remote port.
mcastAddress	The multicast address.
mcastPort	The multicast port.
rcvSize	The connection buffer receive size.
sndSize	The connection buffer send size.

Member Data Documentation

◆ mcastAddress

::std::string Ice::UDPConnectionInfo::mcastAddress

The multicast address.

◆ mcastPort

::Ice::Int Ice::UDPConnectionInfo::mcastPort

The multicast port.

◆ rcvSize

::Ice::Int Ice::UDPConnectionInfo::rcvSize

The connection buffer receive size.

◆ sndSize

::Ice::Int Ice::UDPConnectionInfo::sndSize

The connection buffer send size.

The documentation for this class was generated from the following file:

generated/cpp98/x64/Release/Ice/Connection.h
