The user-level interface to a connection. More...

#include <Ice/Ice.h>

Inheritance diagram for Ice::Connection:

[legend]

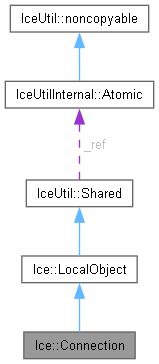

Collaboration diagram for Ice::Connection:

[legend]

Public Types
typedef ConnectionPtr	PointerType

Public Member Functions
virtual AsyncResultPtr	begin_flushBatchRequests (CompressBatch compress)=0
	Flush any pending batch requests for this connection.
virtual AsyncResultPtr	begin_flushBatchRequests (CompressBatch compress, const Callback_Connection_flushBatchRequestsPtr &cb, const LocalObjectPtr &cookie=0)=0
	Flush any pending batch requests for this connection.
virtual AsyncResultPtr	begin_flushBatchRequests (CompressBatch compress, const CallbackPtr &cb, const LocalObjectPtr &cookie=0)=0
	Flush any pending batch requests for this connection.
virtual AsyncResultPtr	begin_heartbeat ()=0
	Send a heartbeat message.
virtual AsyncResultPtr	begin_heartbeat (const Callback_Connection_heartbeatPtr &cb, const LocalObjectPtr &cookie=0)=0
	Send a heartbeat message.
virtual AsyncResultPtr	begin_heartbeat (const CallbackPtr &cb, const LocalObjectPtr &cookie=0)=0
	Send a heartbeat message.
virtual void	close (ConnectionClose mode) throw () =0
	Manually close the connection using the specified closure mode.
virtual ObjectPrx	createProxy (const Identity &id) const =0
	Create a special proxy that always uses this connection.
virtual void	end_flushBatchRequests (const AsyncResultPtr &result)=0
	Flush any pending batch requests for this connection.
virtual void	end_heartbeat (const AsyncResultPtr &result)=0
	Send a heartbeat message.
virtual void	flushBatchRequests (CompressBatch compress)=0
	Flush any pending batch requests for this connection.
virtual ACM	getACM () throw () =0
	Get the ACM parameters.
virtual ObjectAdapterPtr	getAdapter () const throw () =0
	Get the object adapter that dispatches requests for this connection.
virtual EndpointPtr	getEndpoint () const throw () =0
	Get the endpoint from which the connection was created.
virtual ConnectionInfoPtr	getInfo () const =0
	Returns the connection information.
virtual void	heartbeat ()=0
	Send a heartbeat message.
virtual void	setACM (const IceUtil::Optional< Int > &timeout, const IceUtil::Optional< ACMClose > &close, const IceUtil::Optional< ACMHeartbeat > &heartbeat)=0
	Set the active connection management parameters.
virtual void	setAdapter (const ObjectAdapterPtr &adapter)=0
	Explicitly set an object adapter that dispatches requests that are received over this connection.
virtual void	setBufferSize (Int rcvSize, Int sndSize)=0
	Set the connection buffer receive/send size.
virtual void	setCloseCallback (const CloseCallbackPtr &callback)=0
	Set a close callback on the connection.
virtual void	setHeartbeatCallback (const HeartbeatCallbackPtr &callback)=0
	Set a heartbeat callback on the connection.
virtual void	throwException () const =0
	Throw an exception indicating the reason for connection closure.
virtual Int	timeout () const throw () =0
	Get the timeout for the connection.
virtual::std::string	toString () const throw () =0
	Return a description of the connection as human readable text, suitable for logging or error messages.
virtual::std::string	type () const throw () =0
	Return the connection type.
virtual	~Connection ()
Public Member Functions inherited from Ice::LocalObject
virtual bool	operator< (const LocalObject &) const
virtual bool	operator== (const LocalObject &) const
Public Member Functions inherited from IceUtil::Shared
void	__clearFlag (unsigned char flag)
virtual void	__decRef ()
virtual int	__getRef () const
bool	__hasFlag (unsigned char flag)
virtual void	__incRef ()
void	__setFlag (unsigned char flag)
virtual void	__setNoDelete (bool)
Shared &	operator= (const Shared &)
	Shared ()
	Shared (const Shared &)
virtual	~Shared ()

Additional Inherited Members
Static Public Attributes inherited from IceUtil::Shared
static const unsigned char	NoDelete
Protected Attributes inherited from IceUtil::Shared
unsigned char	_flags
IceUtilInternal::Atomic	_ref

Detailed Description

The user-level interface to a connection.

Member Typedef Documentation

◆ PointerType

typedef ConnectionPtr Ice::Connection::PointerType

Constructor & Destructor Documentation

◆ ~Connection()

virtual Ice::Connection::~Connection ( )

virtual

Member Function Documentation

◆ begin_flushBatchRequests() [1/3]

virtual AsyncResultPtr Ice::Connection::begin_flushBatchRequests ( CompressBatch compress )

pure virtual

Flush any pending batch requests for this connection.

This means all batch requests invoked on fixed proxies associated with the connection.

Parameters

compress Specifies whether or not the queued batch requests should be compressed before being sent over the wire.

Returns: The asynchronous result object for the invocation.

◆ begin_flushBatchRequests() [2/3]

virtual AsyncResultPtr Ice::Connection::begin_flushBatchRequests	(	CompressBatch	compress,
		const Callback_Connection_flushBatchRequestsPtr &	cb,
		const LocalObjectPtr &	cookie = 0 )

pure virtual

Flush any pending batch requests for this connection.

This means all batch requests invoked on fixed proxies associated with the connection.

Parameters

compress	Specifies whether or not the queued batch requests should be compressed before being sent over the wire.
cb	Callback to be invoked when the invocation completes
cookie	Extra data to associate with the invocation.

Returns: The asynchronous result object for the invocation.

◆ begin_flushBatchRequests() [3/3]

virtual AsyncResultPtr Ice::Connection::begin_flushBatchRequests	(	CompressBatch	compress,
		const CallbackPtr &	cb,
		const LocalObjectPtr &	cookie = 0 )

pure virtual

Flush any pending batch requests for this connection.

This means all batch requests invoked on fixed proxies associated with the connection.

Parameters

compress	Specifies whether or not the queued batch requests should be compressed before being sent over the wire.
cb	Callback to be invoked when the invocation completes
cookie	Extra data to associate with the invocation.

Returns: The asynchronous result object for the invocation.

◆ begin_heartbeat() [1/3]

virtual AsyncResultPtr Ice::Connection::begin_heartbeat ( )

pure virtual

Send a heartbeat message.

Returns: The asynchronous result object for the invocation.

◆ begin_heartbeat() [2/3]

virtual AsyncResultPtr Ice::Connection::begin_heartbeat	(	const Callback_Connection_heartbeatPtr &	cb,
		const LocalObjectPtr &	cookie = 0 )

pure virtual

Send a heartbeat message.

Parameters

cb	Callback to be invoked when the invocation completes
cookie	Extra data to associate with the invocation.

Returns: The asynchronous result object for the invocation.

◆ begin_heartbeat() [3/3]

virtual AsyncResultPtr Ice::Connection::begin_heartbeat	(	const CallbackPtr &	cb,
		const LocalObjectPtr &	cookie = 0 )

pure virtual

Send a heartbeat message.

Parameters

cb	Callback to be invoked when the invocation completes
cookie	Extra data to associate with the invocation.

Returns: The asynchronous result object for the invocation.

◆ close()

virtual void Ice::Connection::close	(	ConnectionClose	mode	)
throw	(	)

pure virtual

Manually close the connection using the specified closure mode.

Parameters

mode	Determines how the connection will be closed.

See also: ConnectionClose

◆ createProxy()

virtual ObjectPrx Ice::Connection::createProxy ( const Identity & id ) const

pure virtual

Create a special proxy that always uses this connection.

This can be used for callbacks from a server to a client if the server cannot directly establish a connection to the client, for example because of firewalls. In this case, the server would create a proxy using an already established connection from the client.

Parameters

id	The identity for which a proxy is to be created.

Returns: A proxy that matches the given identity and uses this connection.

See also: setAdapter

◆ end_flushBatchRequests()

virtual void Ice::Connection::end_flushBatchRequests ( const AsyncResultPtr & result )

pure virtual

Flush any pending batch requests for this connection.

This means all batch requests invoked on fixed proxies associated with the connection.

Parameters

result The asynchronous result object returned by the begin_ method.

◆ end_heartbeat()

virtual void Ice::Connection::end_heartbeat ( const AsyncResultPtr & result )

pure virtual

Send a heartbeat message.

Parameters

result The asynchronous result object returned by the begin_ method.

◆ flushBatchRequests()

virtual void Ice::Connection::flushBatchRequests ( CompressBatch compress )

pure virtual

Flush any pending batch requests for this connection.

This means all batch requests invoked on fixed proxies associated with the connection.

Parameters

compress Specifies whether or not the queued batch requests should be compressed before being sent over the wire.

◆ getACM()

virtual ACM Ice::Connection::getACM	(		)
throw	(	)

pure virtual

Get the ACM parameters.

Returns: The ACM parameters.

◆ getAdapter()

virtual ObjectAdapterPtr Ice::Connection::getAdapter	(		)	const
throw	(	)

pure virtual

Get the object adapter that dispatches requests for this connection.

Returns: The object adapter that dispatches requests for the connection, or null if no adapter is set.

See also: setAdapter

◆ getEndpoint()

virtual EndpointPtr Ice::Connection::getEndpoint	(		)	const
throw	(	)

pure virtual

Get the endpoint from which the connection was created.

Returns: The endpoint from which the connection was created.

◆ getInfo()

virtual ConnectionInfoPtr Ice::Connection::getInfo ( ) const

pure virtual

Returns the connection information.

Returns: The connection information.

◆ heartbeat()

virtual void Ice::Connection::heartbeat ( )

pure virtual

Send a heartbeat message.

◆ setACM()

virtual void Ice::Connection::setACM	(	const IceUtil::Optional< Int > &	timeout,
		const IceUtil::Optional< ACMClose > &	close,
		const IceUtil::Optional< ACMHeartbeat > &	heartbeat )

pure virtual

Set the active connection management parameters.

Parameters

timeout	The timeout value in seconds, must be >= 0.
close	The close condition
heartbeat	The hertbeat condition

◆ setAdapter()

virtual void Ice::Connection::setAdapter ( const ObjectAdapterPtr & adapter )

pure virtual

Explicitly set an object adapter that dispatches requests that are received over this connection.

A client can invoke an operation on a server using a proxy, and then set an object adapter for the outgoing connection that is used by the proxy in order to receive callbacks. This is useful if the server cannot establish a connection back to the client, for example because of firewalls.

Parameters

adapter The object adapter that should be used by this connection to dispatch requests. The object adapter must be activated. When the object adapter is deactivated, it is automatically removed from the connection. Attempts to use a deactivated object adapter raise ObjectAdapterDeactivatedException

See also: createProxy; getAdapter

◆ setBufferSize()

virtual void Ice::Connection::setBufferSize	(	Int	rcvSize,
		Int	sndSize )

pure virtual

Set the connection buffer receive/send size.

Parameters

rcvSize	The connection receive buffer size.
sndSize	The connection send buffer size.

◆ setCloseCallback()

virtual void Ice::Connection::setCloseCallback ( const CloseCallbackPtr & callback )

pure virtual

Set a close callback on the connection.

The callback is called by the connection when it's closed. The callback is called from the Ice thread pool associated with the connection. If the callback needs more information about the closure, it can call Connection#throwException.

Parameters

callback The close callback object.

◆ setHeartbeatCallback()

virtual void Ice::Connection::setHeartbeatCallback ( const HeartbeatCallbackPtr & callback )

pure virtual

Set a heartbeat callback on the connection.

The callback is called by the connection when a heartbeat is received. The callback is called from the Ice thread pool associated with the connection.

Parameters

callback The heartbeat callback object.

◆ throwException()

virtual void Ice::Connection::throwException ( ) const

pure virtual

Throw an exception indicating the reason for connection closure.

For example, CloseConnectionException is raised if the connection was closed gracefully, whereas ConnectionManuallyClosedException is raised if the connection was manually closed by the application. This operation does nothing if the connection is not yet closed.

◆ timeout()

virtual Int Ice::Connection::timeout	(		)	const
throw	(	)

pure virtual

Get the timeout for the connection.

Returns: The connection's timeout.

◆ toString()

virtual::std::string Ice::Connection::toString	(		)	const
throw	(	)

pure virtual

Return a description of the connection as human readable text, suitable for logging or error messages.

Returns: The description of the connection as human readable text.

◆ type()

virtual::std::string Ice::Connection::type	(		)	const
throw	(	)

pure virtual

Return the connection type.

This corresponds to the endpoint type, i.e., "tcp", "udp", etc.

Returns: The type of the connection.

The documentation for this class was generated from the following file:

generated/cpp98/x64/Release/Ice/Connection.h

Public Types

Public Member Functions

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ PointerType

Constructor & Destructor Documentation

◆ ~Connection()

Member Function Documentation

◆ begin_flushBatchRequests() [1/3]

◆ begin_flushBatchRequests() [2/3]

◆ begin_flushBatchRequests() [3/3]

◆ begin_heartbeat() [1/3]

◆ begin_heartbeat() [2/3]

◆ begin_heartbeat() [3/3]

◆ close()

◆ createProxy()

◆ end_flushBatchRequests()

◆ end_heartbeat()

◆ flushBatchRequests()

◆ getACM()

◆ getAdapter()

◆ getEndpoint()

◆ getInfo()

◆ heartbeat()

◆ setACM()

◆ setAdapter()

◆ setBufferSize()

◆ setCloseCallback()

◆ setHeartbeatCallback()

◆ throwException()

◆ timeout()

◆ toString()

◆ type()
