Publishers publish information on a particular topic. More...

#include <IceStorm/IceStorm.h>

Inheritance diagram for IceStorm::Topic:

[legend]

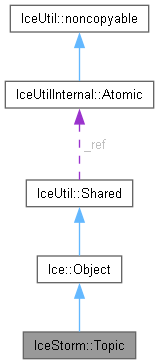

Collaboration diagram for IceStorm::Topic:

[legend]

Public Types
typedef TopicPtr	PointerType
typedef TopicPrx	ProxyType

Public Member Functions
virtual void	destroy (const ::Ice::Current &current=::Ice::emptyCurrent)=0
	Destroy the topic.
virtual LinkInfoSeq	getLinkInfoSeq (const ::Ice::Current &current=::Ice::emptyCurrent) const =0
	Retrieve information on the current links.
virtual::std::string	getName (const ::Ice::Current &current=::Ice::emptyCurrent) const =0
	Get the name of this topic.
virtual::Ice::ObjectPrx	getNonReplicatedPublisher (const ::Ice::Current &current=::Ice::emptyCurrent) const =0
	Get a non-replicated proxy to a publisher object for this topic.
virtual::Ice::ObjectPrx	getPublisher (const ::Ice::Current &current=::Ice::emptyCurrent) const =0
	Get a proxy to a publisher object for this topic.
virtual::Ice::IdentitySeq	getSubscribers (const ::Ice::Current &current=::Ice::emptyCurrent) const =0
	Retrieve the list of subscribers for this topic.
virtual const ::std::string &	ice_id (const ::Ice::Current &current=::Ice::emptyCurrent) const
	Obtains a Slice type ID representing the most-derived interface supported by this object.
virtual ::std::vector< ::std::string >	ice_ids (const ::Ice::Current &current=::Ice::emptyCurrent) const
	Obtains a list of the Slice type IDs representing the interfaces supported by this object.
virtual bool	ice_isA (const ::std::string &id, const ::Ice::Current &current=::Ice::emptyCurrent) const
	Determines whether this object supports an interface with the given Slice type ID.
virtual void	link (const TopicPrx &linkTo, ::Ice::Int cost, const ::Ice::Current &current=::Ice::emptyCurrent)=0
	Create a link to the given topic.
virtual::Ice::ObjectPrx	subscribeAndGetPublisher (const QoS &theQoS, const ::Ice::ObjectPrx &subscriber, const ::Ice::Current &current=::Ice::emptyCurrent)=0
	Subscribe with the given `qos` to this topic.
virtual void	unlink (const TopicPrx &linkTo, const ::Ice::Current &current=::Ice::emptyCurrent)=0
	Destroy the link from this topic to the given topic `linkTo`.
virtual void	unsubscribe (const ::Ice::ObjectPrx &subscriber, const ::Ice::Current &current=::Ice::emptyCurrent)=0
	Unsubscribe the given `subscriber`.
virtual	~Topic ()
Public Member Functions inherited from Ice::Object
virtual ObjectPtr	ice_clone () const
	Returns a shallow copy of the object.
virtual void	ice_collectable (bool b)
	Determines whether this object, and by extension the graph of all objects reachable from this object, are eligible for garbage collection when all external references to the graph have been released.
virtual bool	ice_dispatch (Ice::Request &request, const DispatchInterceptorAsyncCallbackPtr &cb=0)
	Dispatches an invocation to a servant.
virtual SlicedDataPtr	ice_getSlicedData () const
	Obtains the sliced data associated with this instance.
virtual const std::string &	ice_id (const Current &current=Ice::emptyCurrent) const
	Returns the Slice type ID of the most-derived interface supported by this object.
virtual std::vector< std::string >	ice_ids (const Current &current=Ice::emptyCurrent) const
	Returns the Slice type IDs of the interfaces supported by this object.
virtual bool	ice_isA (const std::string &s, const Current &current=Ice::emptyCurrent) const
	Tests whether this object supports a specific Slice interface.
virtual Int	ice_operationAttributes (const std::string &operation) const
	Returns the Freeze metadata attributes for an operation.
virtual void	ice_ping (const Current &current=Ice::emptyCurrent) const
	Tests whether this object can be reached.
virtual void	ice_postUnmarshal ()
	The Ice run time invokes this method vafter unmarshaling an object's data members.
virtual void	ice_preMarshal ()
	The Ice run time invokes this method prior to marshaling an object's data members.
virtual bool	operator< (const Object &) const
virtual bool	operator== (const Object &) const
Public Member Functions inherited from IceUtil::Shared
void	__clearFlag (unsigned char flag)
virtual void	__decRef ()
virtual int	__getRef () const
bool	__hasFlag (unsigned char flag)
virtual void	__incRef ()
void	__setFlag (unsigned char flag)
virtual void	__setNoDelete (bool)
Shared &	operator= (const Shared &)
	Shared ()
	Shared (const Shared &)
virtual	~Shared ()

Static Public Member Functions
static const ::std::string &	ice_staticId ()
	Obtains the Slice type ID corresponding to this class.
Static Public Member Functions inherited from Ice::Object
static const std::string &	ice_staticId ()
	Obtains the Slice type ID of this type.

Additional Inherited Members
Static Public Attributes inherited from IceUtil::Shared
static const unsigned char	NoDelete
Protected Member Functions inherited from Ice::Object
	Object ()
virtual	~Object ()
Protected Attributes inherited from IceUtil::Shared
unsigned char	_flags
IceUtilInternal::Atomic	_ref

Detailed Description

Publishers publish information on a particular topic.

A topic logically represents a type.

See also: TopicManager

Member Typedef Documentation

◆ PointerType

typedef TopicPtr IceStorm::Topic::PointerType

◆ ProxyType

typedef TopicPrx IceStorm::Topic::ProxyType

Constructor & Destructor Documentation

◆ ~Topic()

virtual IceStorm::Topic::~Topic ( )

virtual

Member Function Documentation

◆ destroy()

virtual void IceStorm::Topic::destroy ( const ::Ice::Current & current = ::Ice::emptyCurrent )

pure virtual

Destroy the topic.

Parameters

current The Current object for the invocation.

◆ getLinkInfoSeq()

virtual LinkInfoSeq IceStorm::Topic::getLinkInfoSeq ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

pure virtual

Retrieve information on the current links.

Parameters

current The Current object for the invocation.

Returns: A sequence of LinkInfo objects.

◆ getName()

virtual::std::string IceStorm::Topic::getName ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

pure virtual

Get the name of this topic.

Parameters

current The Current object for the invocation.

Returns: The name of the topic.

See also: TopicManager::create

◆ getNonReplicatedPublisher()

virtual::Ice::ObjectPrx IceStorm::Topic::getNonReplicatedPublisher ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

pure virtual

Get a non-replicated proxy to a publisher object for this topic.

To publish data to a topic, the publisher calls getPublisher and then casts to the topic type. An unchecked cast must be used on this proxy.

Parameters

current The Current object for the invocation.

Returns: A proxy to publish data on this topic.

◆ getPublisher()

virtual::Ice::ObjectPrx IceStorm::Topic::getPublisher ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

pure virtual

Get a proxy to a publisher object for this topic.

To publish data to a topic, the publisher calls getPublisher and then casts to the topic type. An unchecked cast must be used on this proxy. If a replicated IceStorm deployment is used this call may return a replicated proxy.

Parameters

current The Current object for the invocation.

Returns: A proxy to publish data on this topic.

◆ getSubscribers()

virtual::Ice::IdentitySeq IceStorm::Topic::getSubscribers ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

pure virtual

Retrieve the list of subscribers for this topic.

Parameters

current The Current object for the invocation.

Returns: The sequence of Ice identities for the subscriber objects.

◆ ice_id()

virtual const ::std::string & IceStorm::Topic::ice_id ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

virtual

Obtains a Slice type ID representing the most-derived interface supported by this object.

Parameters

current The Current object for the invocation.

Returns: A fully-scoped type ID.

◆ ice_ids()

virtual ::std::vector< ::std::string > IceStorm::Topic::ice_ids ( const ::Ice::Current & current = ::Ice::emptyCurrent ) const

Obtains a list of the Slice type IDs representing the interfaces supported by this object.

Parameters

current The Current object for the invocation.

Returns: A list of fully-scoped type IDs.

◆ ice_isA()

virtual bool IceStorm::Topic::ice_isA	(	const ::std::string &	id,
		const ::Ice::Current &	current = ::Ice::emptyCurrent ) const

virtual

Determines whether this object supports an interface with the given Slice type ID.

Parameters

id	The fully-scoped Slice type ID.
current	The Current object for the invocation.

Returns: True if this object supports the interface, false, otherwise.

◆ ice_staticId()

const ::std::string & IceStorm::Topic::ice_staticId ( )

static

Obtains the Slice type ID corresponding to this class.

Returns: A fully-scoped type ID.

◆ link()

virtual void IceStorm::Topic::link	(	const TopicPrx &	linkTo,
		::Ice::Int	cost,
		const ::Ice::Current &	current = ::Ice::emptyCurrent )

pure virtual

Create a link to the given topic.

All events originating on this topic will also be sent to linkTo.

Parameters

linkTo	The topic to link to.
cost	The cost to the linked topic.
current	The Current object for the invocation.

Exceptions

IceStorm::LinkExists Raised if a link to the same topic already exists.

◆ subscribeAndGetPublisher()

virtual::Ice::ObjectPrx IceStorm::Topic::subscribeAndGetPublisher	(	const QoS &	theQoS,
		const ::Ice::ObjectPrx &	subscriber,
		const ::Ice::Current &	current = ::Ice::emptyCurrent )

pure virtual

Subscribe with the given qos to this topic.

A per-subscriber publisher object is returned.

Parameters

theQoS	The quality of service parameters for this subscription.
subscriber	The subscriber's proxy.
current	The Current object for the invocation.

Returns: The per-subscriber publisher object.

Exceptions

IceStorm::AlreadySubscribed	Raised if the subscriber object is already subscribed.
IceStorm::BadQoS	Raised if the requested quality of service is unavailable or invalid.
IceStorm::InvalidSubscriber	Raised if the subscriber object is null.

See also: unsubscribe

◆ unlink()

virtual void IceStorm::Topic::unlink	(	const TopicPrx &	linkTo,
		const ::Ice::Current &	current = ::Ice::emptyCurrent )

pure virtual

Destroy the link from this topic to the given topic linkTo.

Parameters

linkTo	The topic to destroy the link to.
current	The Current object for the invocation.

Exceptions

IceStorm::NoSuchLink Raised if a link to the topic does not exist.

◆ unsubscribe()

virtual void IceStorm::Topic::unsubscribe	(	const ::Ice::ObjectPrx &	subscriber,
		const ::Ice::Current &	current = ::Ice::emptyCurrent )

pure virtual

Unsubscribe the given subscriber.

Parameters

subscriber	The proxy of an existing subscriber.
current	The Current object for the invocation.

See also: subscribeAndGetPublisher

The documentation for this class was generated from the following file:

generated/cpp98/x64/Release/IceStorm/IceStorm.h
